New 10pcs/lot High quality stereo ceramic cartridge replace for AUE+High quality 1/2’ cartridge holder for TK12/TK22 Dual 1009-F 1009-SK 1009-SK2+OFC/Pure Silver/PCOCC lead wire AUETK12/22 assembly

You are bidding on a lot of cartridge and headshell assembly in the color or material shown above. These are brand new products in original factory's package.

Please note this is not an original TECHNICS / Audio-Technica / SHURE / EMPIRE / PHILIPS / ORTOFON / Dual / SONY / SANYO / Mitsubishi ... And tonearm / turntable in photoes are not include.

Type:High quality stereo ceramic cartridge replace for AUE +High quality 1/2’ cartridge holder for TK12/TK22 Dual 1009-F 1009-SK 1009-SK2 1010-A 1010-F 1010-S 1015 1015F 1019+OFC/Pure Silver/PCOCC lead wire  leadwire assembly.

(Each piece is an assembled and tested finished product, just same as photoes shown above)

Lot size: 10 pcs assembly per lot, for example, if you need 50 pcs, just buy 5 lots.

Weight: about 12g/pcs

Package: Everyone box, containing 1pcs stereo :High quality stereo ceramic cartridge replace for AUE +High quality 1/2’ cartridge holder for TK12/TK22 Dual 1009-F 1009-SK 1009-SK2 1010-A 1010-F 1010-S 1015 1015F 1019+OFC/Pure Silver/PCOCC lead AUETK12/TK22 leadwire assembly.  leadwire assembly, 1pcs sponge soft cushion. Fully transparent, high quality, abrasion resistant and scratch-resistant crystal gift box

AUE CS2AD

High quality stereo ceramic cartridge replace for AUE

Type:  Plastic cantilever stereo ceramic cartridge with or without universal 1/2' mount;

REPLACEMENT PHONOGRAPH CERAMIC CARTRIDGE FOR MANY RECORD PLAYERS OF AUE, Sony, Sanyo, CROSLEY AND MANY OTHERS;
Easy to install;
Excellent sound quality and strong tracking ability;
Perfect as a replacement or backup cartridge;
Output voltage (at 1k Hz, 3.54 cm/sec):  200 mV ~ 350 mV;
Channel balance (at 1kHz): less than 2 dB;
Channel separation (at 1kHz): more than 10 dB;
Tracking force: 5.0g (4 ~ 6g);

Tracking ability: more than 80μm;

Weight: about 5g;

Stylus: stereo spherical stylus;
The stylus tip is from a professional manufacturer who have supplied in the past 40 years to all the OEM manufacturers such as Philips PSR, TETRAD, ORTOFON, DUAL and many others. This stylus is improved according to our long term production experience, it can let your cartridge do wonderfully output. So we can assure you that we supply to you the same quality of tips as original even better.

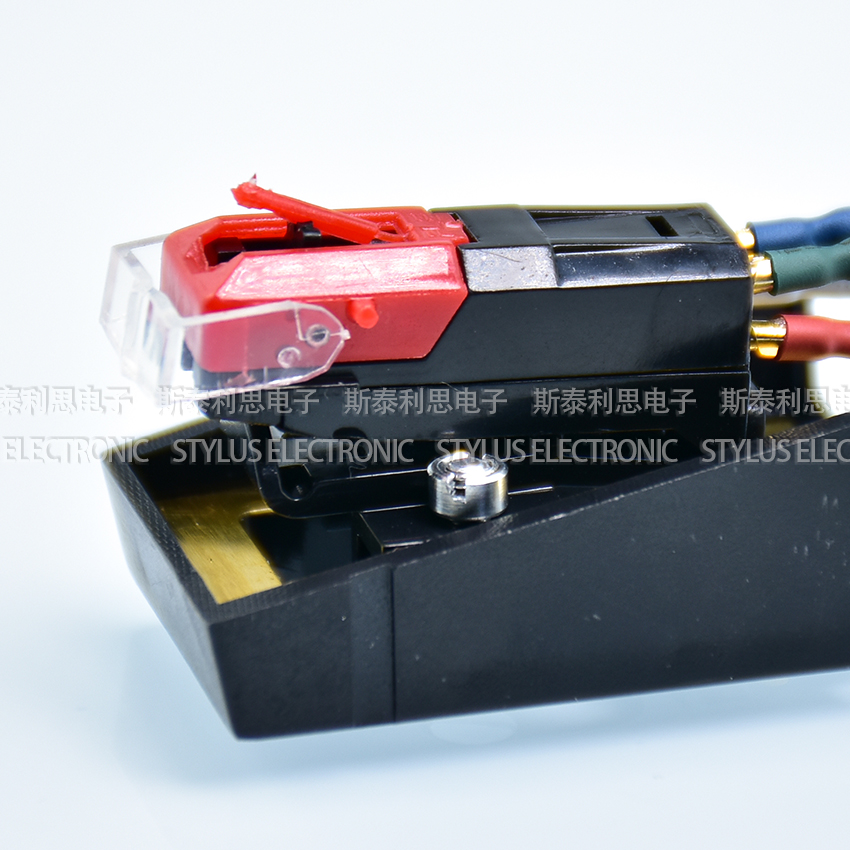

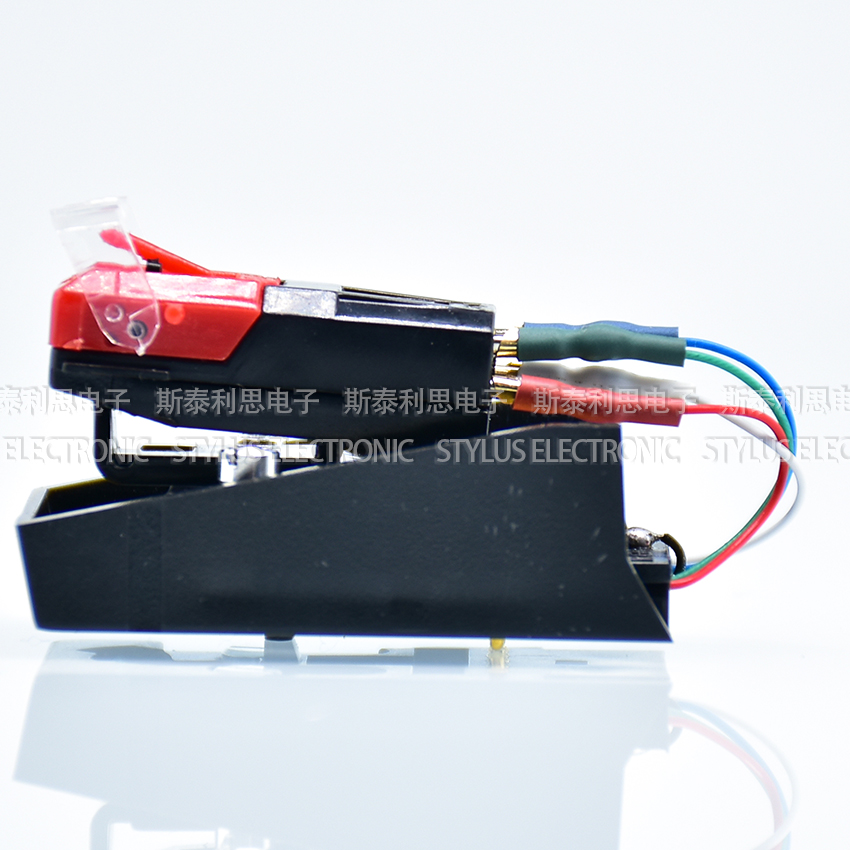

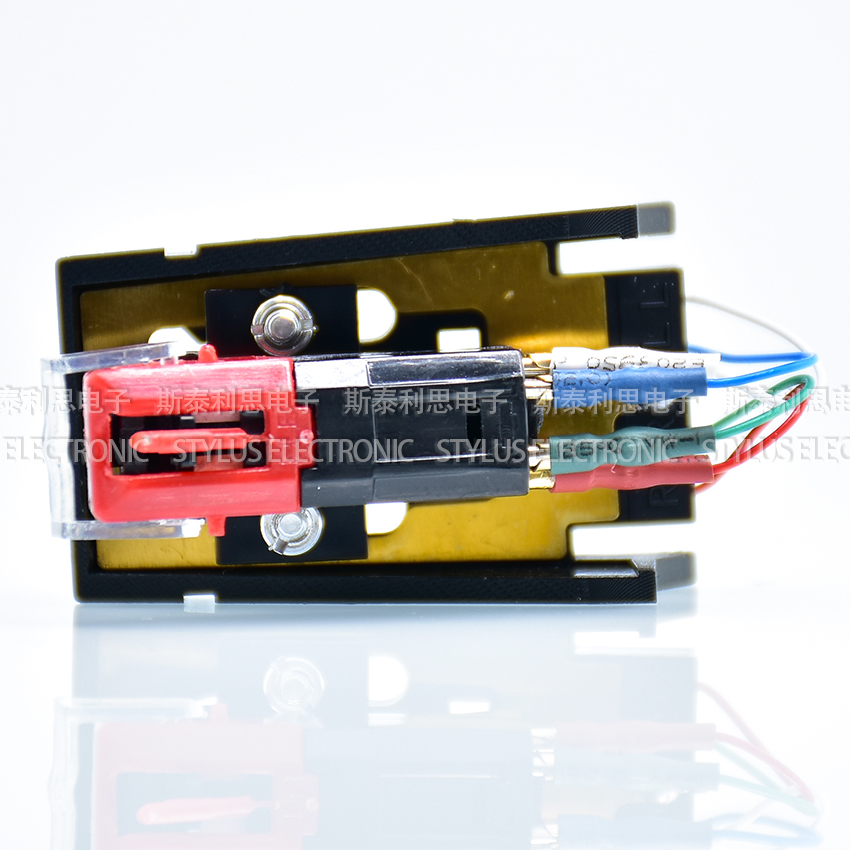

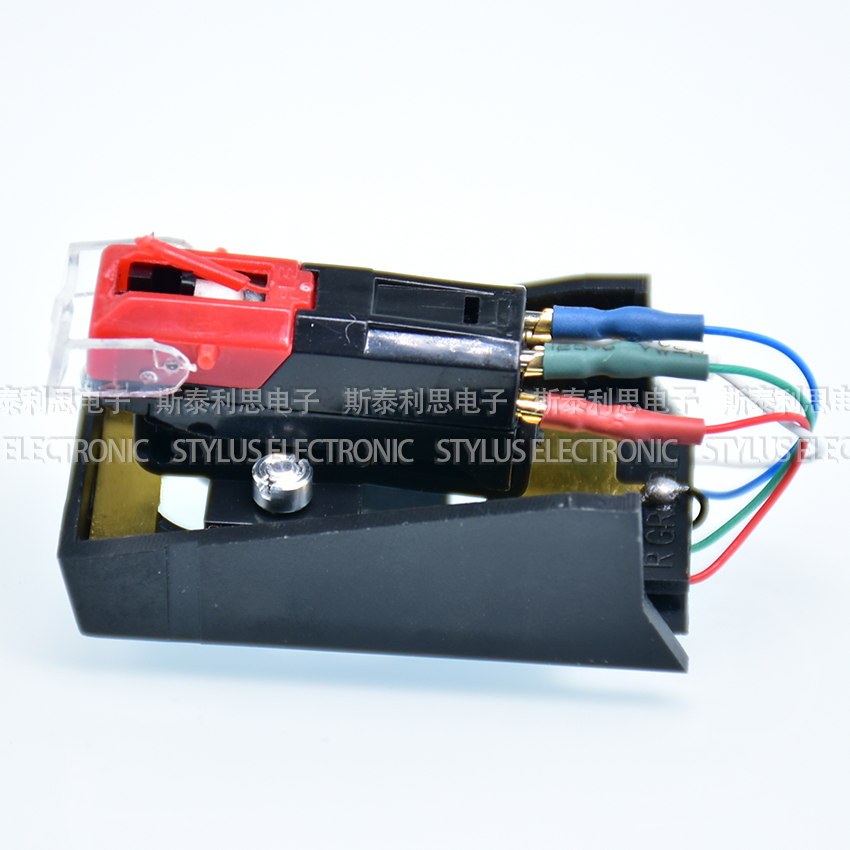

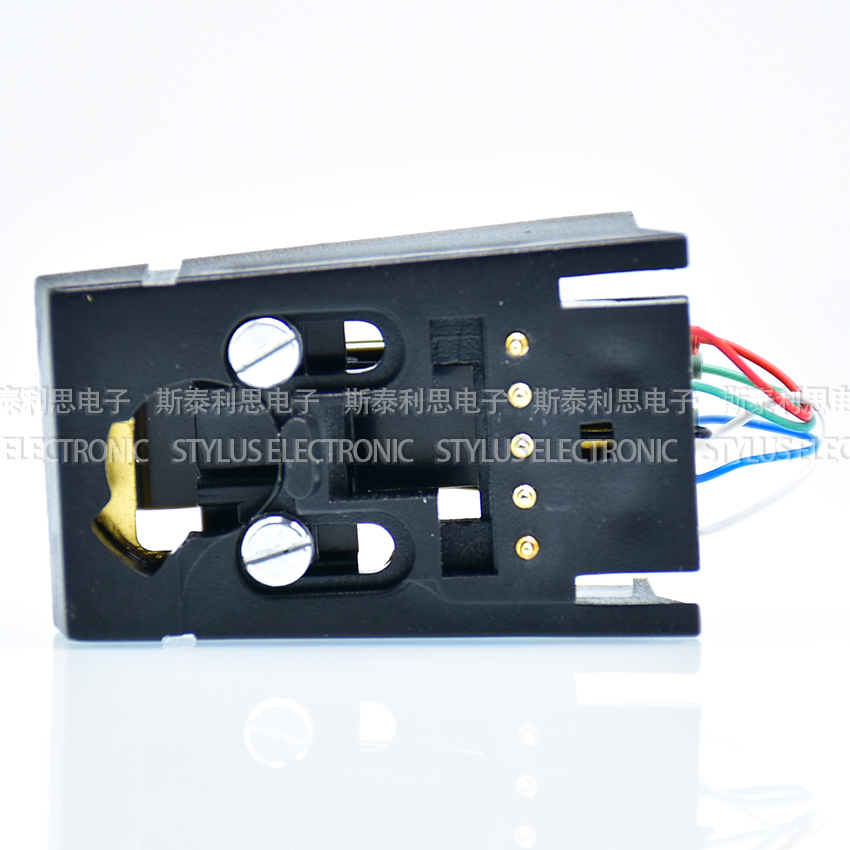

TK12

High quality 1/2’ cartridge holder for TK12 Dual 1009-F 1009-SK 1009-SK2 1010-A 1010-F 1010-S 1015 1015F 1019

Color: black

Material: ABS

True injection molded plastic, not a 3D print.

Has the same interior and exterior dimensions as the original

Suitable for 1/2" mount cartridges

Combined spring loaded 24k gold plated signal pins and hand soldered cartridge lead wires for a superior sound.

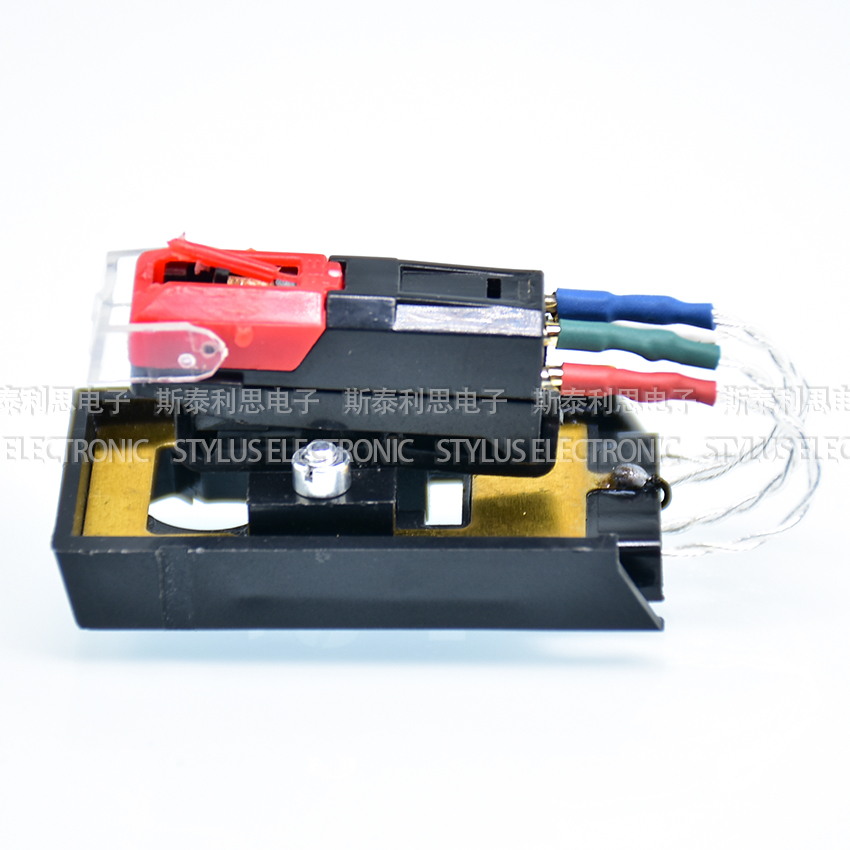

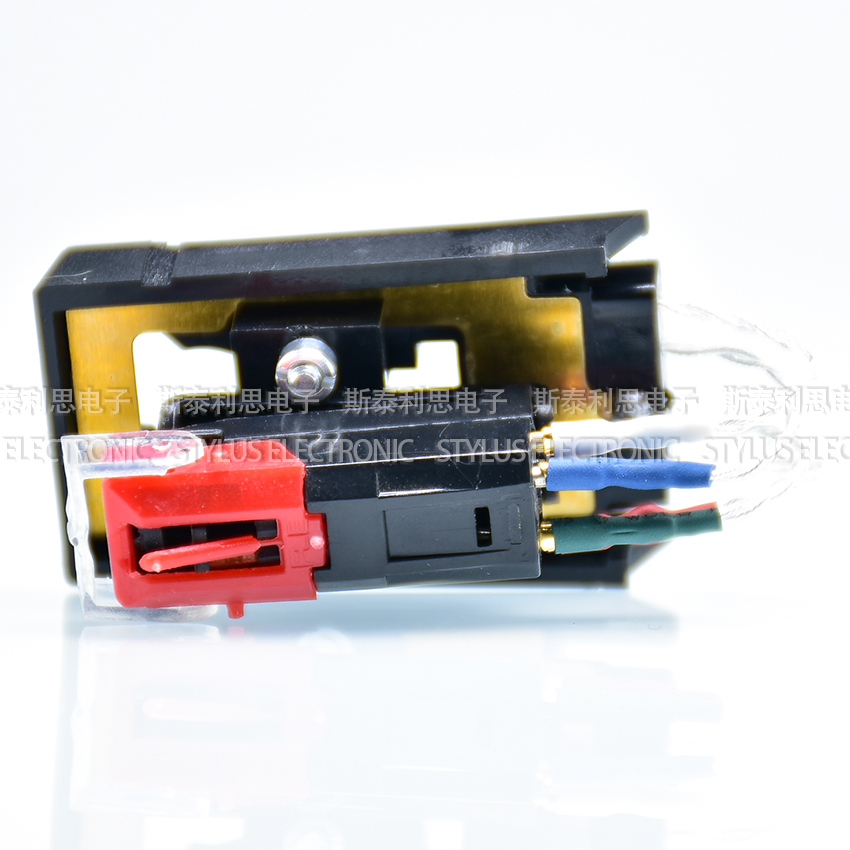

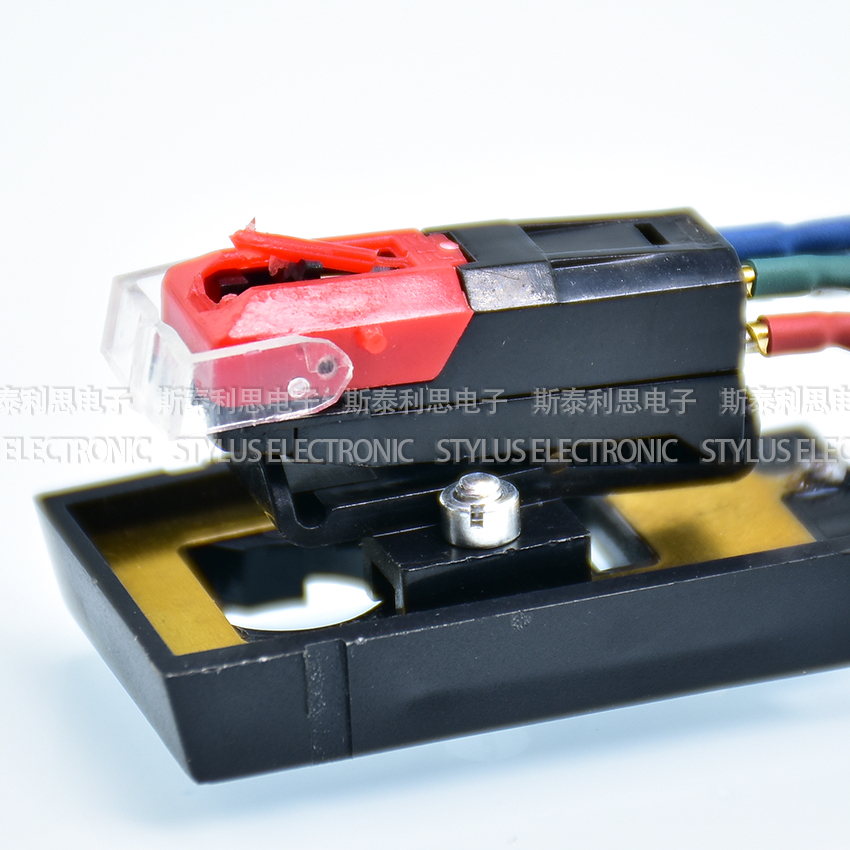

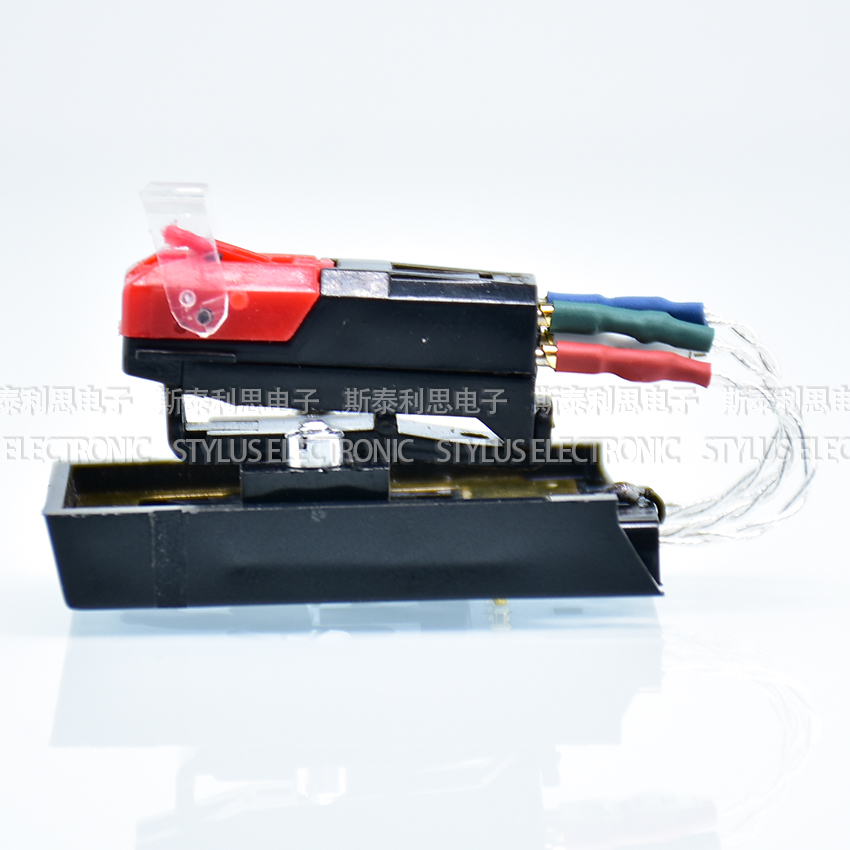

TK22

High quality 1/2’ cartridge holder for TK22 Dual 1009SK 1009SK2 1009F 1010 1010F 1010S 1015 1015F 1016 1019

Color: black

Material: ABS

True injection molded plastic, not a 3D print.

Has the same interior and exterior dimensions as the original

Suitable for 1/2" mount cartridges

Combined spring loaded 24k gold plated signal pins and hand soldered cartridge lead wires for a superior sound.

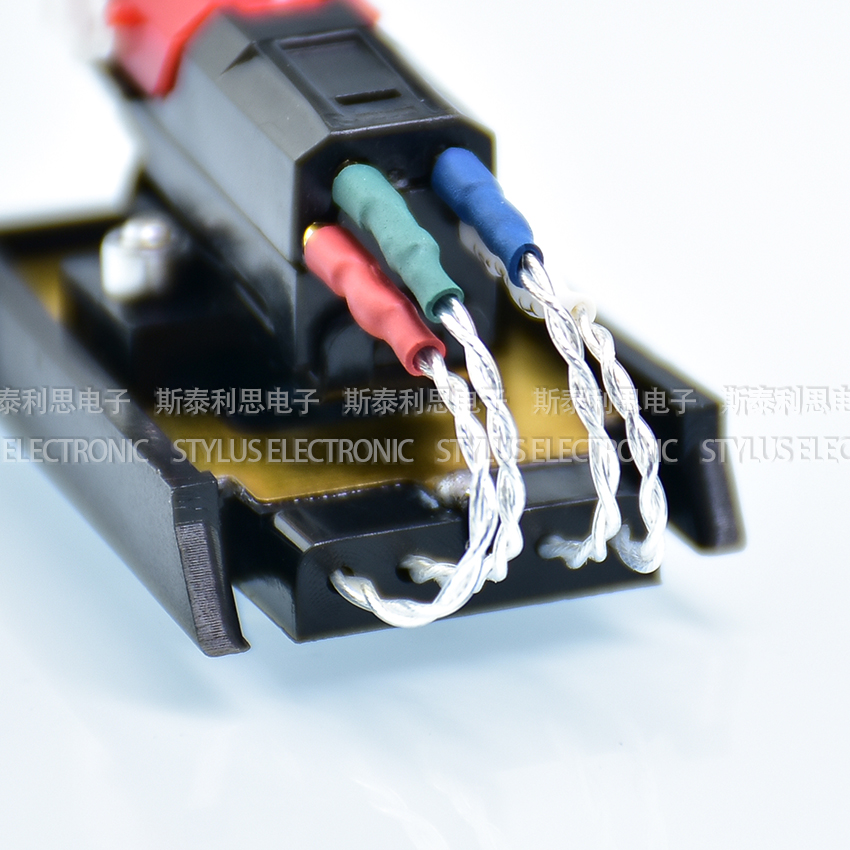

LEADWIRE:

5N Pure Silver litz wire:

30AWG 5N Pure Silver litz wire is the best wire for faster transmission speeds, lossless data and cleaner sound. It's 0.55mm outer diameter, litz construction 7 strands and each strand is 0.1mm diameter 99.999+% Pure soft annealed silver wires in oversized PTFE Teflon insulation. Woven Teflon Litz construction is ideal to deliver RFI and EMI rejection and provides low capacitance. 99.999+% silver transmits electrical signals faster and with less distortion than ordinary OFC wires. High grade Teflon insulation gives a predominant air dielectric and is regarded as the best insulator for bare cable. Our silver is produced using the most up to date continuous casting methods in one of the largest and most stringently tested facilities in the world. Every piece leadwire is made of 2 pieces transparent 30AWG FURUKAWA 5N Pure Silver litz wires and litz construction for much more cleaner sound.

PERFECT CRYSTAL OCC (PCOCC) wire:

The 30AWG PERFECT CRYSTAL OCC (PCOCC) wire is 0.55mm outer diameter. It's litz construction 7 strands and each strand is 0.1mm diameter 99.999% 5N PERFECT CRYSTAL OCC (PCOCC) wires in oversized PTFE Teflon insulation for a more cleaner sound. Woven Teflon Litz construction is ideal to deliver RFI and EMI rejection and provides low capacitance. High grade Teflon insulation gives a predominant air dielectric and is regarded as the best insulator for bare cable.  PCOCC is some of the finest copper wires available for audio and lends itself perfectly to the delicate signal transfer between your cartridge and headshell.  Unlike common manufacturing processes, the PCOCC copper wires undergo a tightly controlled and extended cooling process resulting in an ideal, homogeneous structure. This 5N (99.999%) PCOCC materials is from FURUKAWA JAPAN. Every piece leadwire is made of 2 pieces transparent 30AWG PERFECT CRYSTAL OCC (PCOCC) wires and litz construction for much more cleaner sound. That's means every one set leadwire we use 8 pieces 30AWG PERFECT CRYSTAL OCC (PCOCC) wires.

oxygen free copper (OFC):

Each color leadwire is made up of 1 pcs UL1007 / 28AWG oxygen free copper (OFC) wire, and both ends are manually welded with terminals one by one. Color heat shrink tubes are used to distinguish the sound channel for easy installation.
